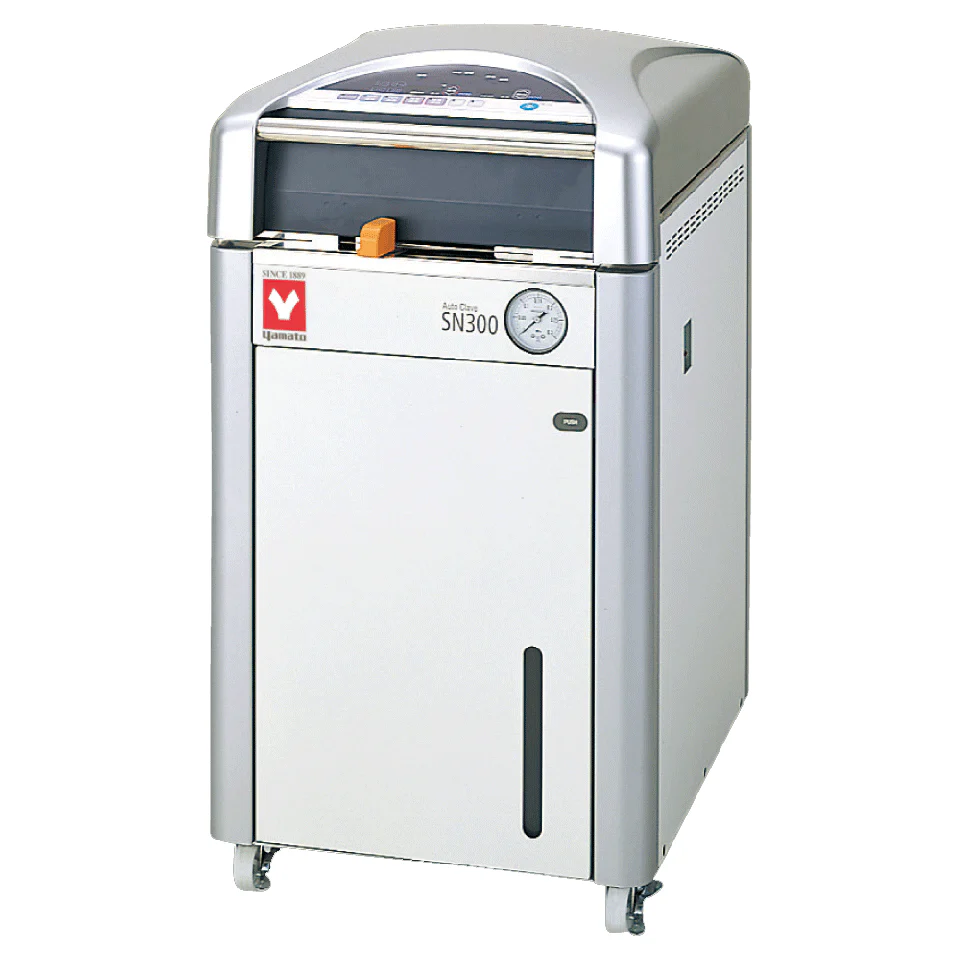

Yamato SN-300C Standard Sterilizer Without Dryer 32L (100-120V)
Yamato SN-300C Standard Sterillizer (without dryer), 32L 100-120V 12.5-15A 50/60Hz
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
Specifications
| Item Code | 241006 |
| Model | SN300 |
| System | Automatic high-pressure steam sterilization |
| Operating temperature range | 45～135℃　45～80℃（Preheating temperature）/45～60℃（Heat-retention process）/65～100℃（Solution process）/105～135℃（Sterilization） |
| Max. working pressure | 0.255MPa |
| Ambient temperature | 5～35℃ |
| Lid | Manual upward opening with an interlock for safety |
| Heater | 100V, 800W×2 units |
| Exhaust valve | One exhaust valve and one slow release valve |
| Connection ports for optional accessories | Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (Branching from the solenoid valve tubing) |
| Cooling fan | Axial fan motor |
| Temp. controller | PID control by microprocessor |
| Temp. display / setting | Digital display / digital setting by â–²/â–¼ keys |
| Timer / Timer resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. |
| Operation mode | Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course, Customer-programmed course |
| Other function | Key locking, Presetting, Saving, Preheating, Forced cooling, Sample temperature sensor (option), Pattern locking, Up to 20 error log saving, Display of accumulated working time / Present time, ON-OFF beeping setting |
| Safety device | Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type), Alarm against the absence of a drain bottle, Failure in locking the lid, Memory error detection, Pressure relief valve (0.255 MPa) |
| Accessories | 2 pcs. stainless steel mesh basket (Dia.262×D204mm), OSM-70/Vapor cup×1, Drain bottle×1, Drain board×1, Chemical indicator 1 set (30 pieces), Filter×1 |
| Internal dimensions（W×H mm） | 300×445mm |
| External dimensions（W×D×H mm） | 460×590×848mm |
| Remarks(dimensions) | Internal capacity 32L |
| Power Source | AC200～240V Single phase |
| Weight | 75kg |
Â
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
$9,520.00
