Okolab OLYMPUS SZX2A GLASS/METAL | Thermal Plate for Olympus SZX Microscope
This large metal-glass heater creates a flat heating surface covering the entire stereo microscope stand. The central glass part features Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading. The wide lateral part features a second surface temperature sensor and a dedicated heating element. Metal and glass surfaces can be independently heated to different temperatures.
It requires H401-T-CONTROLLER and uses both channels (one for the glass and one for the metal)
Features
- Temperature range: from ambient to 45°C
- Accuracy: ±0.3°C
- 4.3'' touch screen controller
- On-board Data logging and download routines to USB drive
- Compatible with Olympus stereo microscope MVX and SZX with the following microscope stands: SZX2-ILLB, SZX2-ILLK, SZX2-ILLD

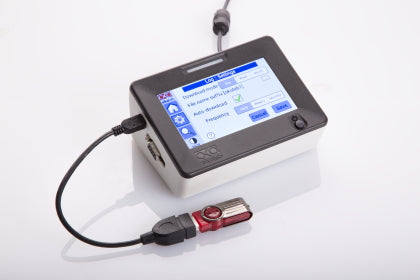

H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- 4.3'' touch screen interface
- External T - sensor (included)
- On-board Data logging and download routines to USB drive
- On-board logging of calibration and alarm events
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices
- Self calibration routines allow to improve temperature accuracy
- Password protected procedure for periodic calibration against certified thermometer
Original: $2,702.00
-65%$2,702.00
$945.70
Description
This large metal-glass heater creates a flat heating surface covering the entire stereo microscope stand. The central glass part features Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading. The wide lateral part features a second surface temperature sensor and a dedicated heating element. Metal and glass surfaces can be independently heated to different temperatures.
It requires H401-T-CONTROLLER and uses both channels (one for the glass and one for the metal)
Features
- Temperature range: from ambient to 45°C
- Accuracy: ±0.3°C
- 4.3'' touch screen controller
- On-board Data logging and download routines to USB drive
- Compatible with Olympus stereo microscope MVX and SZX with the following microscope stands: SZX2-ILLB, SZX2-ILLK, SZX2-ILLD
H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
Features
- T - range: from ambient to 60°C
- T - accuracy on specimen: ± 0.3°C
- 4.3'' touch screen interface
- External T - sensor (included)
- On-board Data logging and download routines to USB drive
- On-board logging of calibration and alarm events
- Alarm buzzer and External Alarm Connector
- One controllers can control independently up to two devices
- Self calibration routines allow to improve temperature accuracy
- Password protected procedure for periodic calibration against certified thermometer
