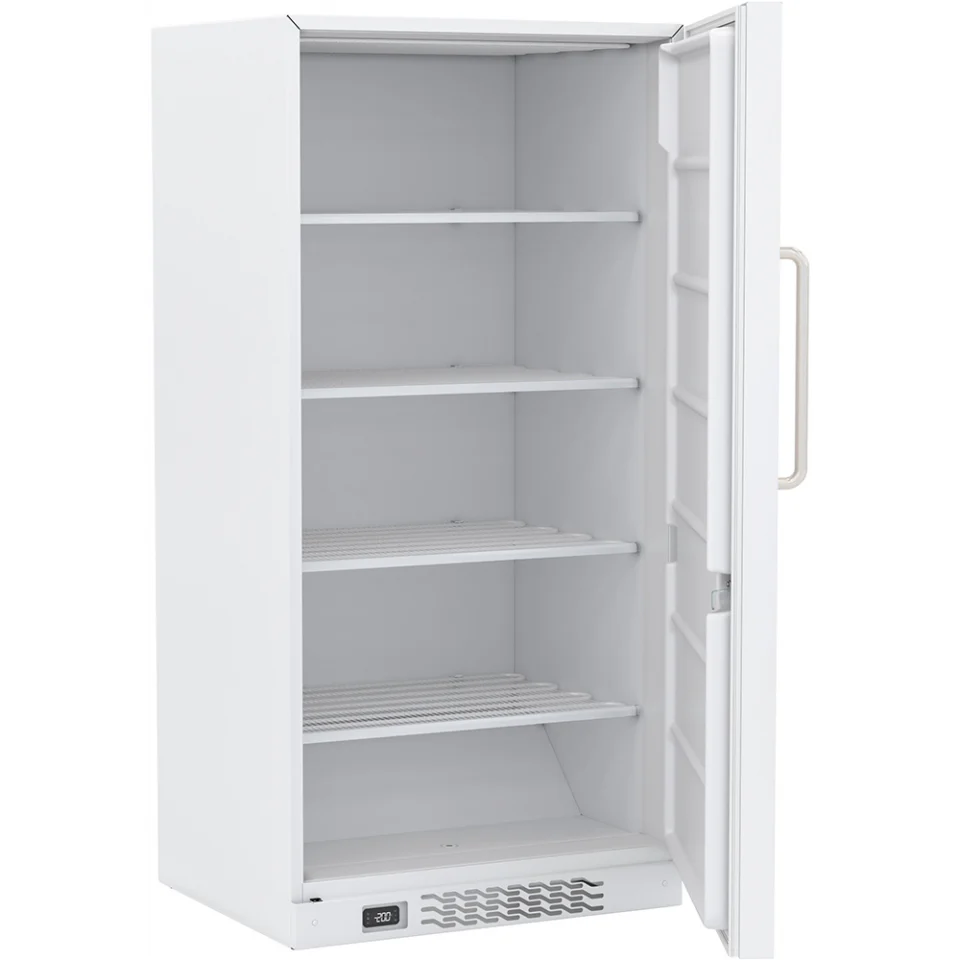

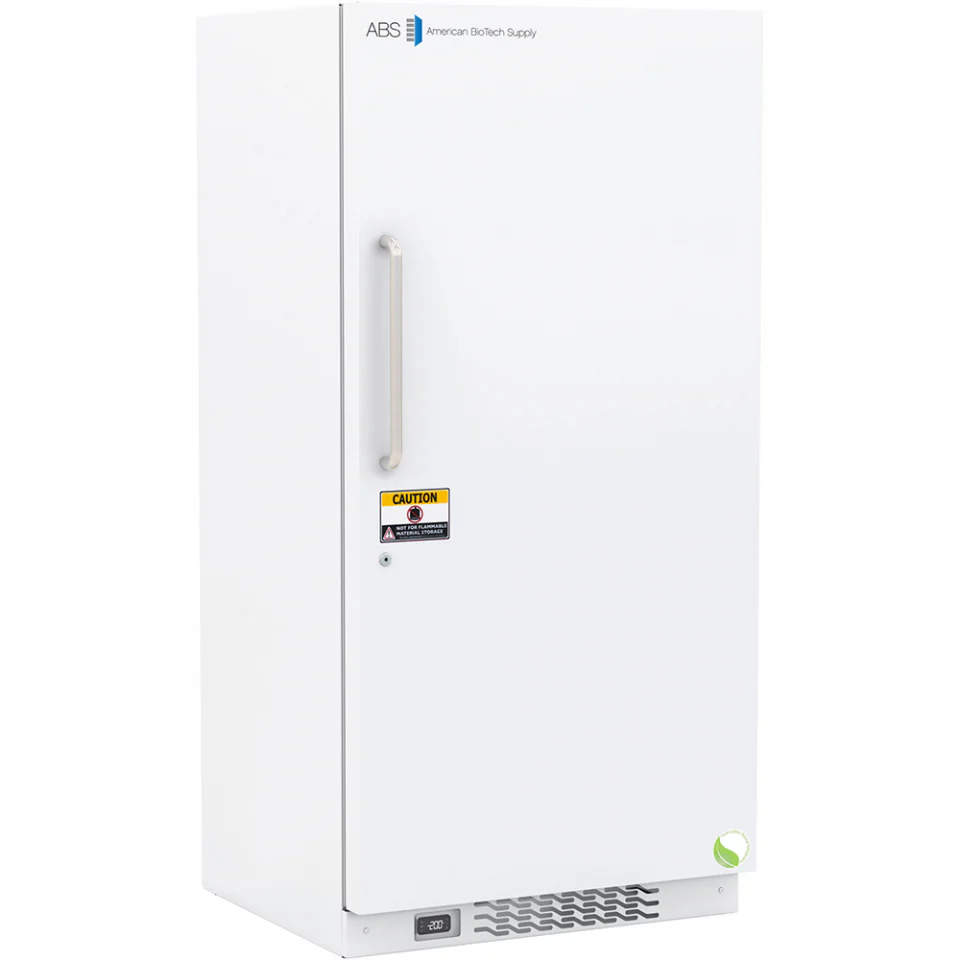

ABS 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants ABT-HC-MFS-30
ABS 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants ABT-HC-MFS-30
ABS 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants ABT-HC-MFS-30
This standard manual defrost freezer offers 30 cubic feet of versatile storage for laboratory environments. Its temperature control is powered by microprocessor technology, protecting samples down to -25°C. A series of audible and visual alarms safeguards stored contents. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and environmental benefits, this model is an efficient and dependable solution for general laboratory applications.
Description
| Storage capacity (cu. ft) | 30 Cu. Ft. |
| Door | One (1) solid swing, right hinged; stainless steel door handle; magnetic door gasket |
| Shelves | Four (4) fixed evaporator shelves |
| Mounting and Installation | Leveling legs |
| External probe access | 3/4″ probe access port on rear wall |
| Insulation | EPA compliant high density urethane foam |
| Exterior materials | Powder coated steel |
| Access control | Keyed door lock |
| General warranty | Two (2) year parts and labor warranty |
| Compressor warranty | Five (5) year compressor parts warranty |
| Product Weight (lbs) | 300 |
| Shipping Weight (lbs) | 330 |
| Rated Amperage | 3.3 Amps |
| Power Plug/Power Cord | NEMA 5-15P plug, 6 ft long cord |
| Facility Electrical Requirement | 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle |
| Agency Listing and Certification | UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard. |
Performance
| Uniformity (Cabinet air) | +/- 3°C |
| Stability (Cabinet air) | +/- 3°C |
| Maximum temperature variation (Cabinet air) | 7°C Total |
| Energy Consumption (kWh/day) | 4.9 kWh/day |
| Average Heat Rejection (BTU/hr) | 690 BTU/hr |
| Pull down time to nominal operating temp | 65 min (empty) |
| Compressor | Hermetic, variable speed |
| Refrigerant | EPA SNAP compliant R290 propane |
| Condenser | Static – exterior walls of cabinet with auxiliary fan |
| Evaporator | Evaporator shelves |
| Defrost | Manual defrost |
Temp Controller
| Controller technology | Microprocessor temperature controller with variable frequency compressor control |
| Battery Backup | N/A |
| Display technology | Digital temperature display, sample simulated digital temperature display; .1° resolution |
| Adjustable Temperature Range | -15° C to -25° C |
| External alarm connection | Remote alarm contacts |
| Alarms | Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts |
| Display Probe | Product simulator bottle with glass bead media |
| Disclaimers | Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH Specifications are subject to change. Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure. Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation. Performance may vary with environmental conditions, product load, or door openings. |
Product Documents
